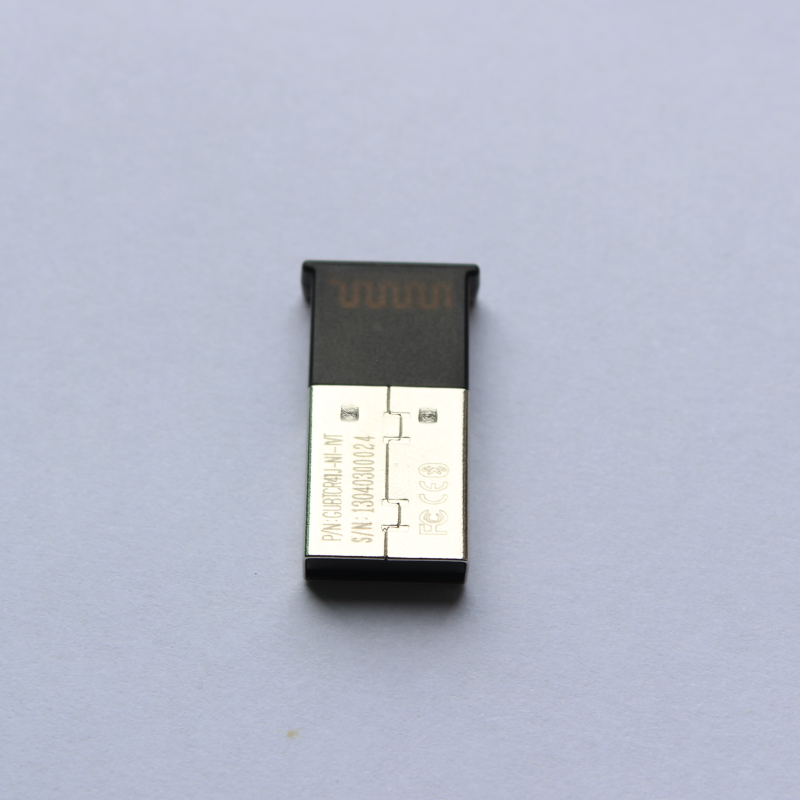

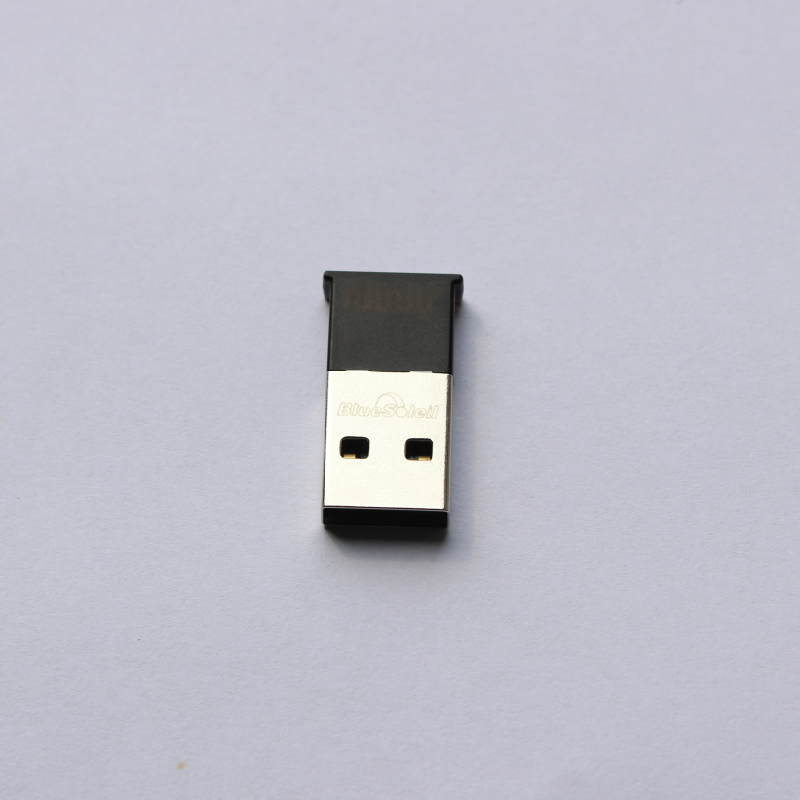

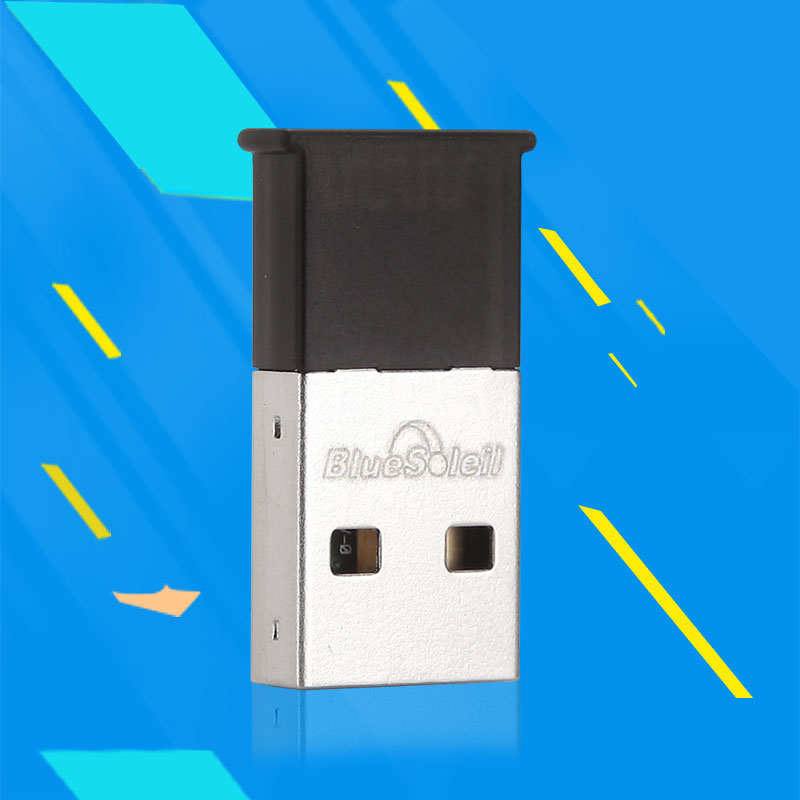

BS005 Mini Dongle (Class I 100 Meters)

Licensed by BlueSoleil 10 and BlueSoleil cPhone, Mini Dongle, Bluetooth v2.1+EDR

Manufacturer: IVT Corporation
Product Type: Dongles
Model: Class I 100 Meters
Place Of Origin: China
Unit Price: US$49.00
Rank:
  • Information
  • Specifications
  • Comment

Why should I choose Bluetooth v2.1 dongle?
What are the new features of Bluetooth v2.1 technology?

Bluetooth Core Specification Version 2.1 is fully backward compatible with 1.1 which includes the following features:

  1. Secure Simple Pairing: radically improves the pairing experience for Bluetooth devices, while increasing the use and strength of security.
  2. Extended inquiry response: provides more information during the inquiry procedure to allow better filtering of devices before connection.
  3. Sniff Subrating: reduces the power consumption when devices are in the sniff low-power mode, especially on links with asymmetric data flows.
  4. Encryption Pause Resume: enables an encryption key to be refreshed, enabling much stronger encryption for connections that stay up for longer than 23.3 hours (one Bluetooth day).



Now, let's update our Bluetooth devices to the latest!
Notice: All these new features will be shown only when both sides are Bluetooth v2.1 devices.

Dongles from BlueSoleil.com are licensed by BlueSoleil 10. For you to get the latest BlueSoleil version, please download BlueSoleil software directly from our website: www.bluesoleil.com. We do not provide any software disk in this package.

1.Standard
Bluetooth EDR 2.1, Class I

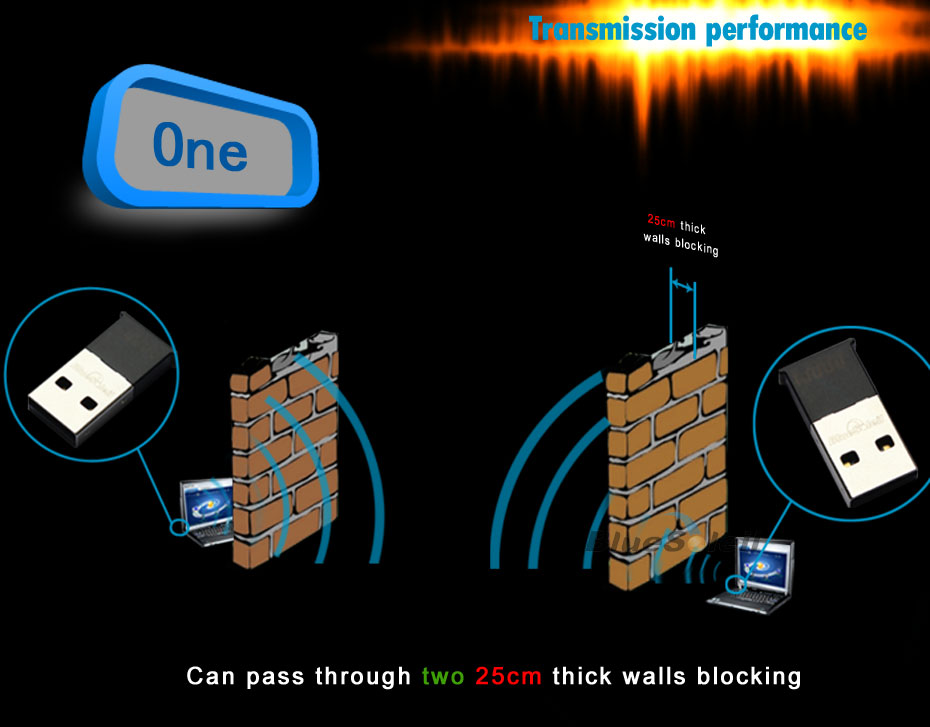

2.Operating Range

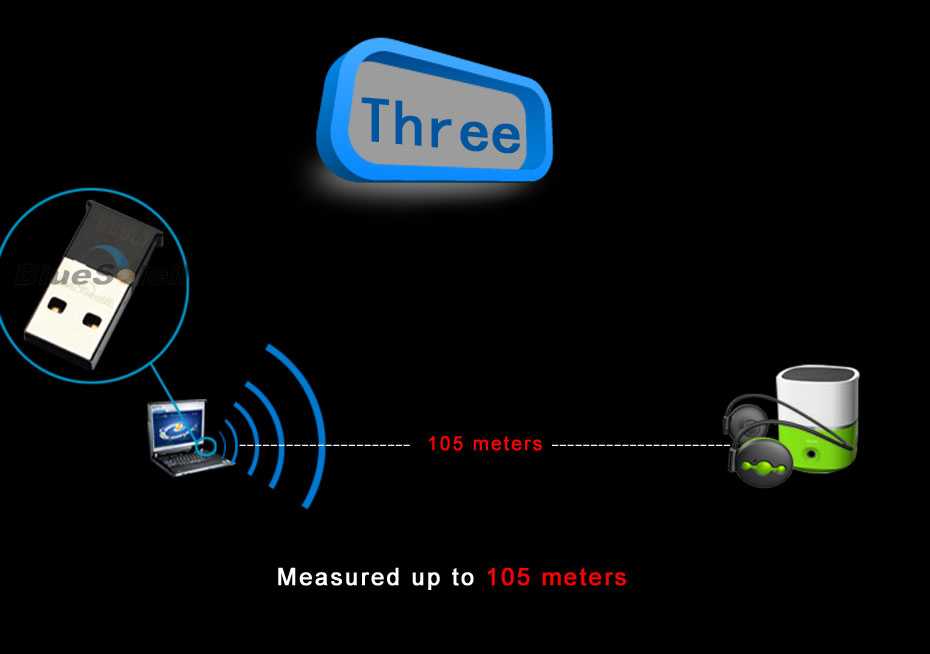

30m ~ 100m

3.Profile Support
Bluetooth profiles support on Windows platform includes:
-Generic access profile (GAP)
-Serial port profile (SPP)
-Service discovery app profile (SDAP)
-Generic object exchange profile (GOEP)
-Object push profile (OPP)
-File transfer profile (FTP)
-Dial-up network profile (DUN)
-LAN access profile (LAP)
-Fax profile (FAX)
-Hard Copy Replacement Profile (HCRP)
-Headset Profile (HSP)
-Human Interface Device(HID)
-Personal Area Network(PAN)
-Adv. Audio Dist. Profile (A2DP)
-A/V Remote Control Profile (AVRCP)
-Hands Free Profile (HFP)
Bluetooth profiles support on Macintosh platform includes:
-Generic access profile (GAP)
-Serial port profile (SPP)
-Service discovery app profile (SDAP)
-Object push profile (OPP)
-File transfer profile (FTP)
-Dial-up network profile (DUN)
-Generic object exchange profile (GOEP)
Human Interface Device(HID)

4.Certification


Specifications

Bluetooth Version Bluetooth v2.1+EDR
Carrier Frequency 2.4GHz~2.4835GHz ISM Band
Input Power 5V from USB
LED Indicator Single LED
RF module sensitivity < -79dBm
Dimension 25* 13* 4mm (L x W x H)
Environmental Operating Ranges - Operating Temperature : 0-70C , Humidity 10- 90%(Non-Condensing)
- Storage Temperature : -20-90C, Humidity 10-90%(Non-Condensing)

Comment

Customer review: 21

17
0
0
0
4
PREM
Level: 1
Rate: added at 2013-05-06 06:46:26

DEAR SIR/MAM,

DOES IT WORKS ON WINDOES XP I HAVE BROUGHT IT I HAVE INSTALLED DRIVER SO MANY TIMES AND TRIED TO ON THE HARDWARE BUT THE LED IS BLINKING TWO TO THREE TIMES WHEN I CONNECTE IT THEN IT GOES OFF....WHAT SHOUD I DO????

Gaurav
Level: 1
Rate: updated at 2013-02-01 19:52:23

Does this come with Bluesoleil 8 s/w ?

1

BlueSoleil_Support replied at 2013-02-01 19:52:23

Hi, you can free download the latest BlueSoleil software from our website, of course you can use this dongle to activate it. Thanks

mohammad
Level: 1
Rate: updated at 2013-02-01 19:47:04

how we can upgrade the software. my device cant recieve the *.jpg photoe format.

1

BlueSoleil_Support replied at 2013-02-01 19:47:04

Hi, you can free download our latest BlueSoleil on our website, but you need to purchase a dongel or a serial number from our website to activate it, thank you.

ScarSpidey
Level: 1
Rate: updated at 2013-02-01 19:43:41

 Excellent Distance! I use it to connect my android and bluetooth headset. The GUI is also very easy to use. I recommend this product and application.

1

BlueSoleil_Support replied at 2013-02-01 19:43:41

Hi,  thank you for your support and trust

san
Level: 1
Rate: added at 2012-02-20 01:05:11

ivt2.7.0.8-voip-release070930 this software serial no ,plz give me this software crack or licensce key

thank you
